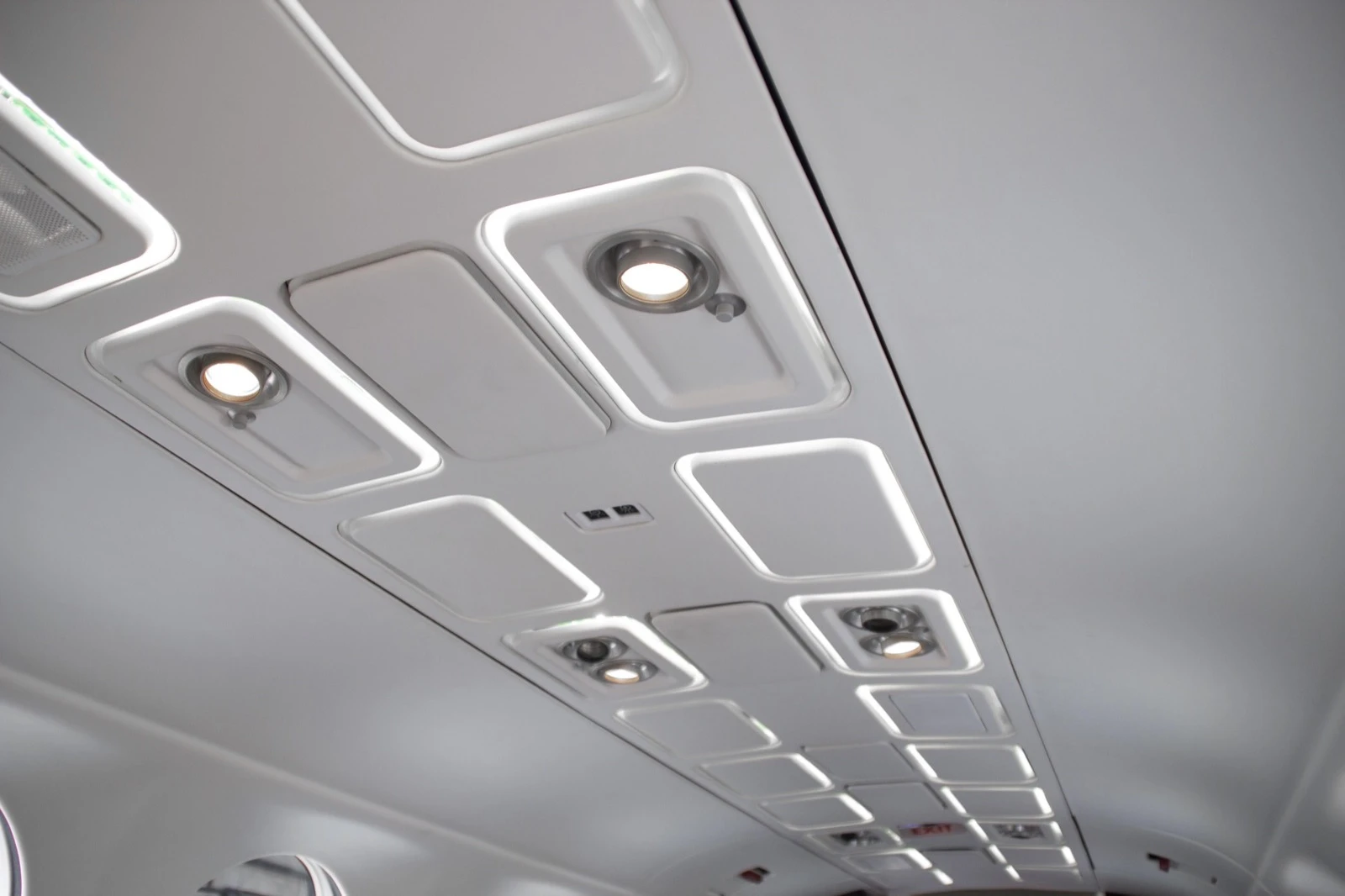

FAA STC SA01634WI
King Air 300 Series EASA 10047156 ANAC 2015505-04
MODEL COLOR TEMPERATURE # OF LEDs PART NUMBER
300 (Diagram) / 300LW Warm White (4100K)
Cool White (5100K)
36 6900336-036
6900336-136
B300 / B300C / 350 Warm White (4100K)
Cool White (5100K)
42 6900336-042
6900336-142

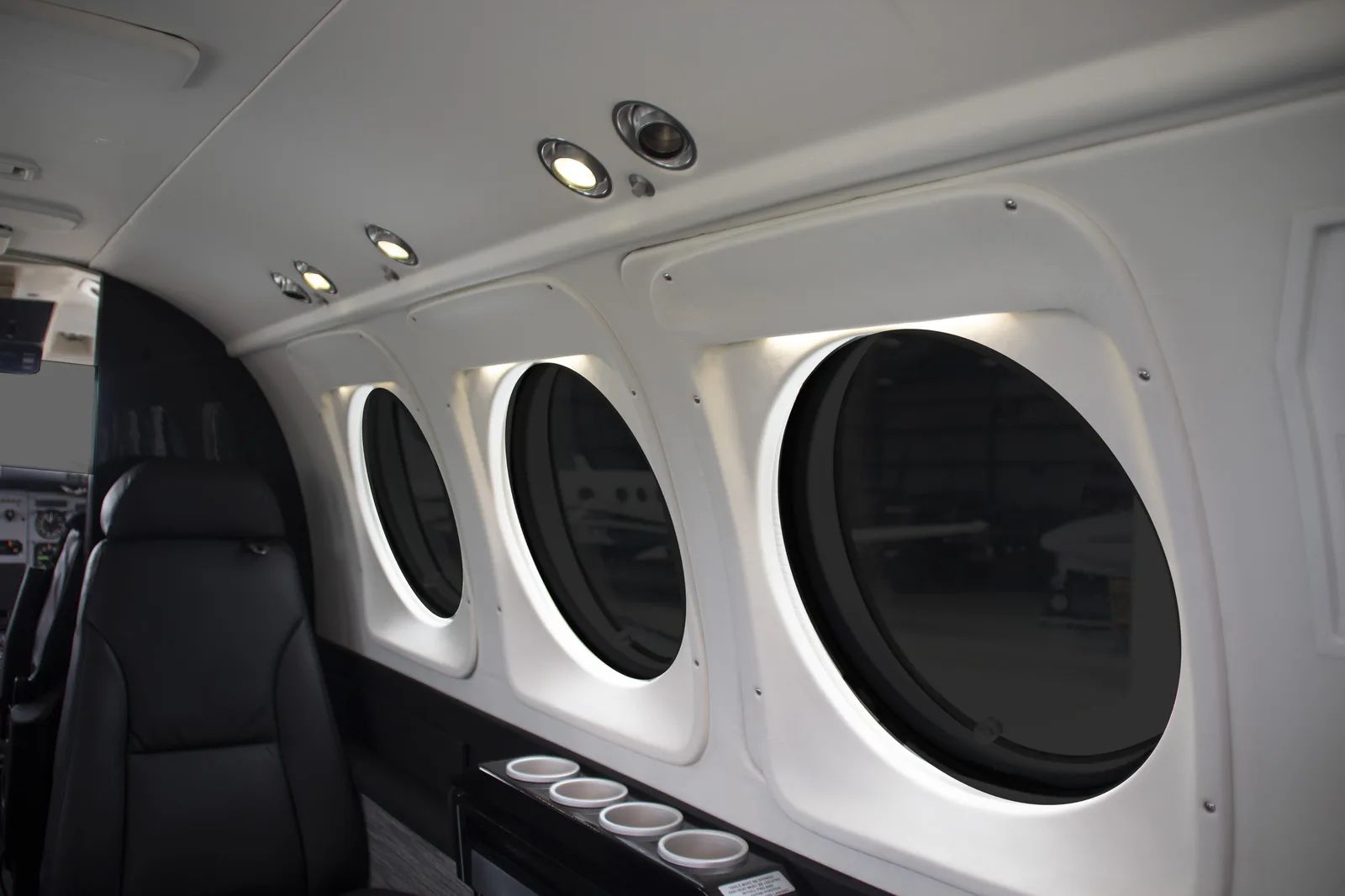

FAA STC SA01748WI
King Air 90, 100, 200 Series  EASA 10051015
MODEL COMPATIBILITY # OF LEDs PART NUMBER

Model 200


Model 200T

BB-132 thru BB-734,
BB-793, BB 829,
BB-854 thru BB-870
BB-874 thru BB-891,
BB-894 BB-896 thru BB-911, BB-913 thru BB-990,
BB-992 thru BB-1438 BB-1440 thru BB BB-1443

BT-1 and after

11  6910080-011

Model 200

Model A100

Model B100

BB-2, BB-6 thru BB-413

B-1, B-90 thru B-92, B-94
and after

BE-2 and after


10




6910080-010



Model 200C,
B200 & B200C

Model B200CT

BL-1 thru BL-72, BL-124 thru


BL-138BN-1 thru BN-4

9



6910080-009



Model 100  B-2 thru B-89 and B-93 8 6910080-008

Model C90
Model C90A




Model E90

Model F90

LJ-654, LJ-674, and after
LJ-1063 thru LJ-1287, LJ-1289 thru LJ-1294, LJ-1296 thru LJ-1299


LW-134, LW-157, and after
LA-2 and after

 7



6910080-007



LED Replacement Reading Lights
MODEL FAA STATUS OPERATING VOLTAGE OPERATING CURRENT LIGHT OUTPUT COMPATIBILITY       PART NUMBER

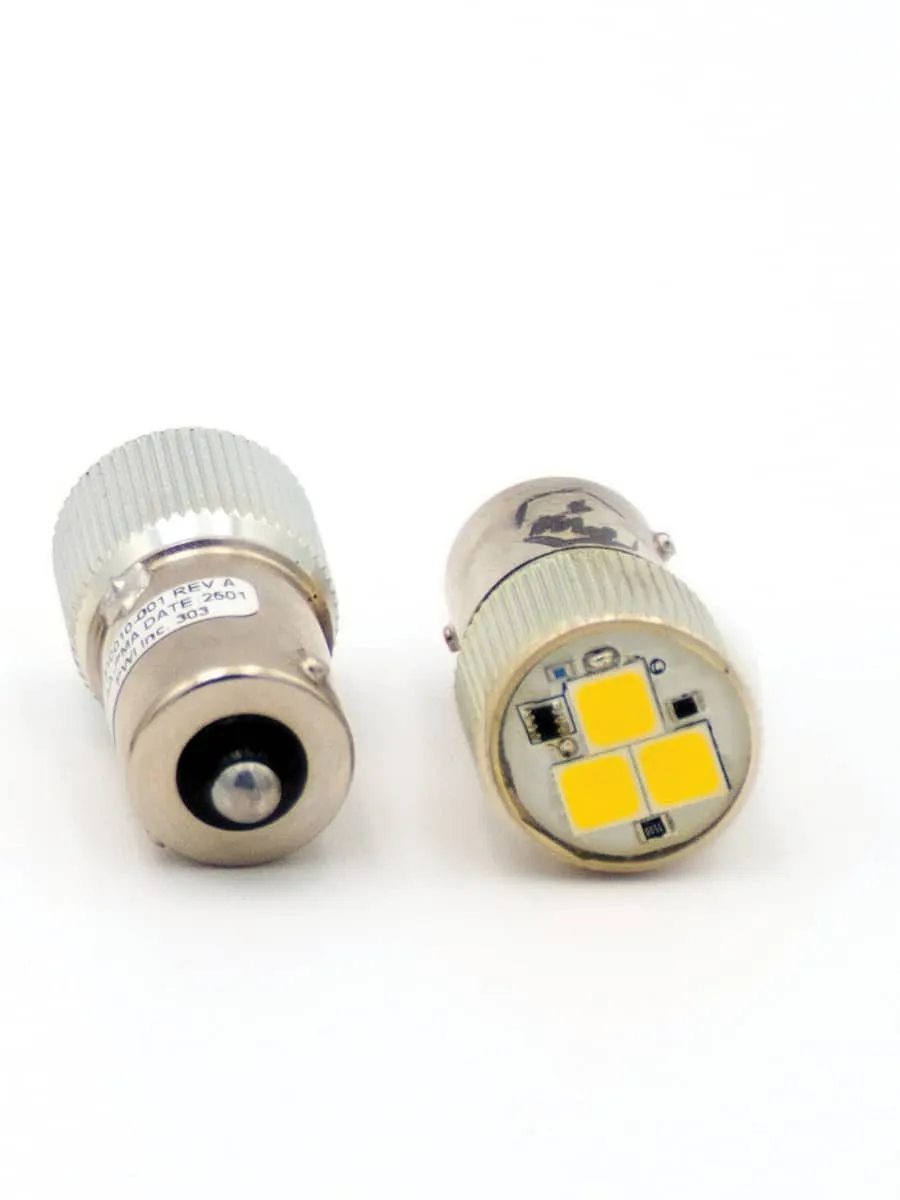

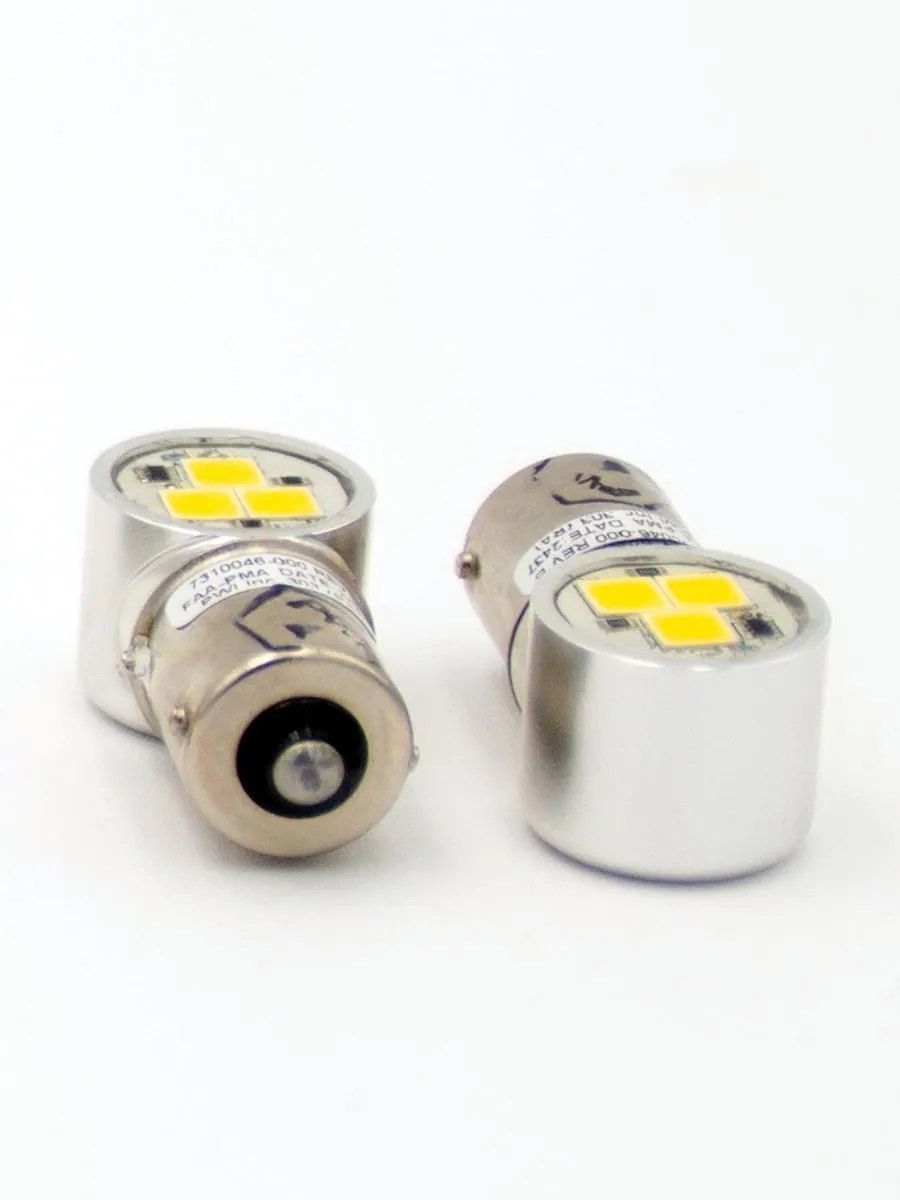

303x PMA # – PQ4159CE 28 24 37

Beechcraft:
90
100
200
250
B300/350
1900


King Air

King Air
King Air
King Air
King Air

——–

Cessna:
525
525A

Citation jet
Citation jet

7310010-000

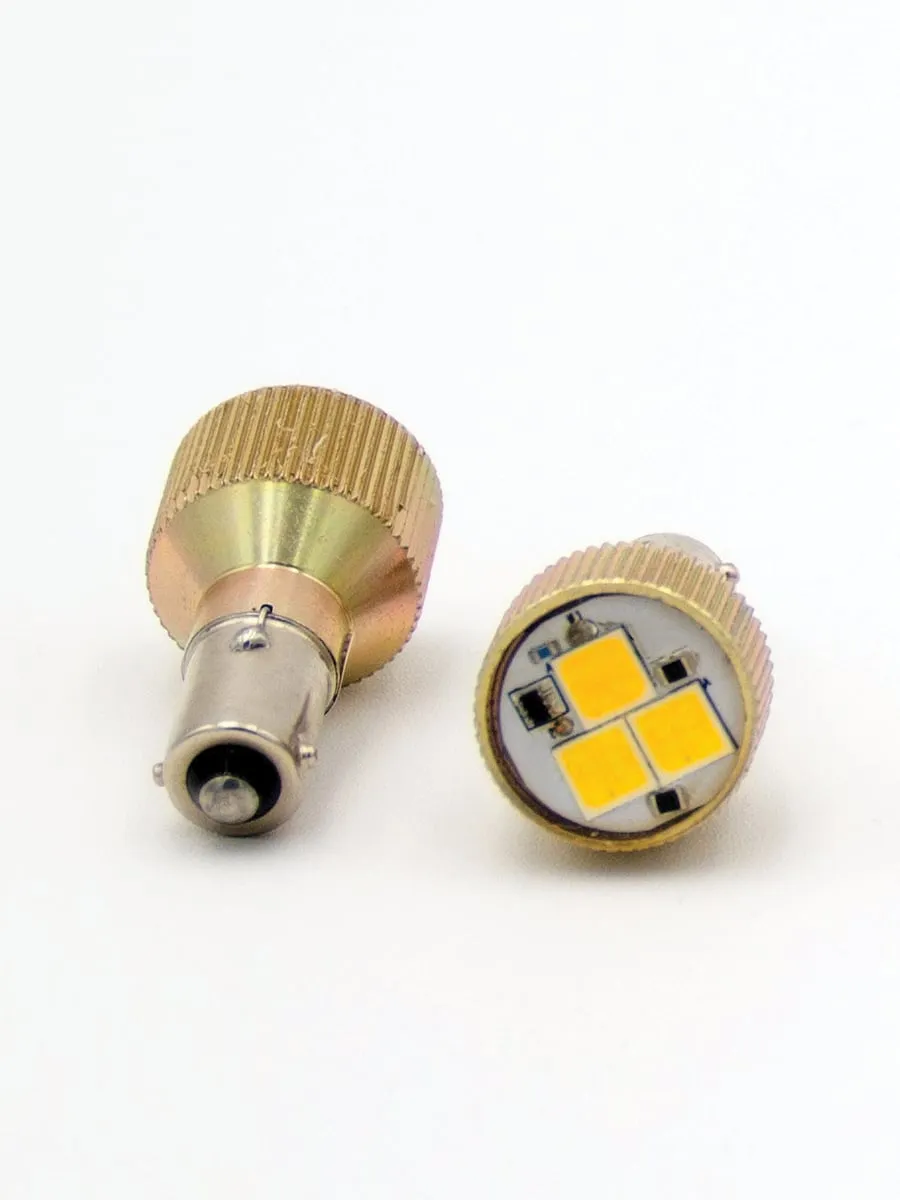

1495 PMA # – PQ4159CE 28 23 44

Beechcraft:
58
58A
G58
99 series
B200
B200C
B200CGT
300
300LW
400
400A


Baron

Baron
Baron
Airliner/Commuter
King Air
King Air
King Air
King Air
King Air
Hawker/Beechjet
Hawker/Beechjet

Cessna:
208
310R
414
T310R
500
501


Caravan



Citation 1
Citation 1/SP

7310006-000

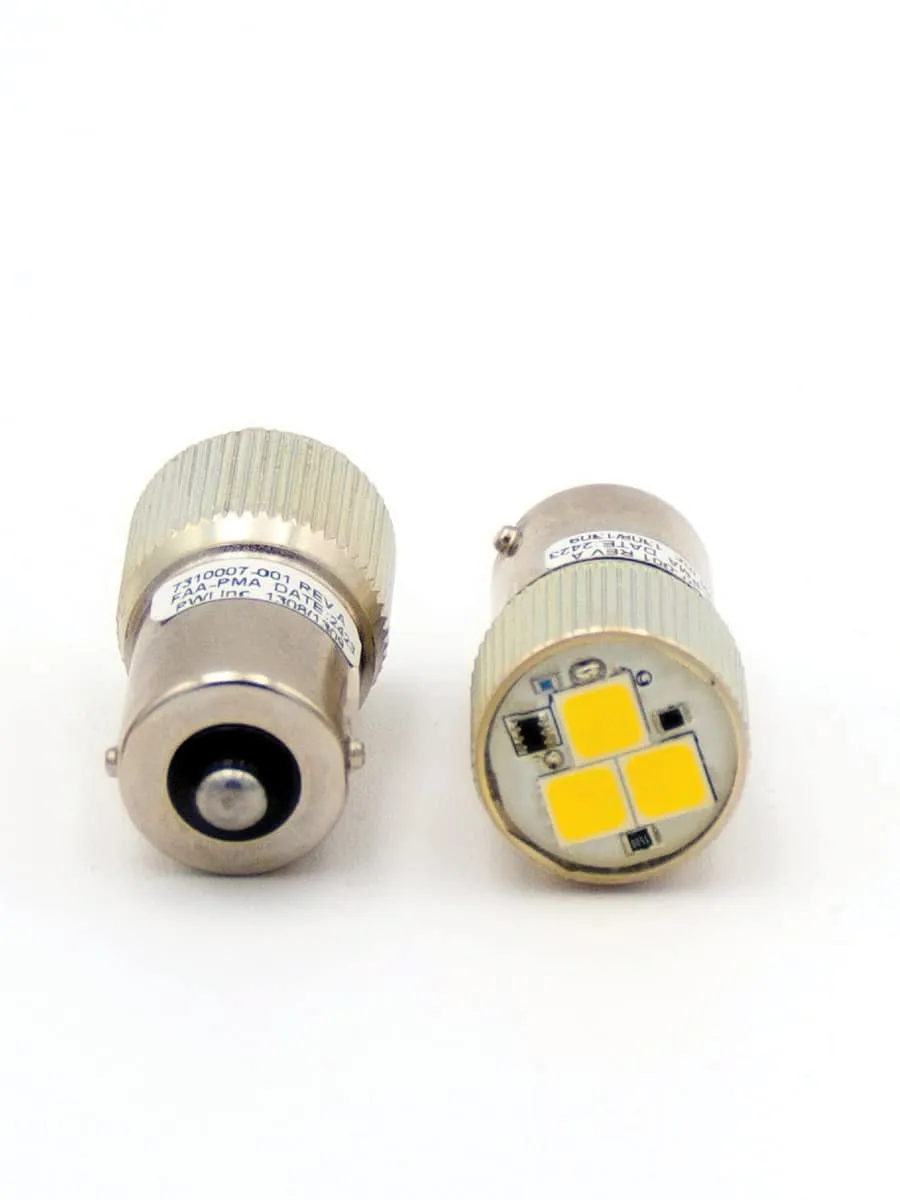

1308 PMA # – PQ4159CE 28 41   Beechcraft:
400A

400

Hawker/Beechjet

Hawker/Beechjet

Cessna:
208
208B
500
501

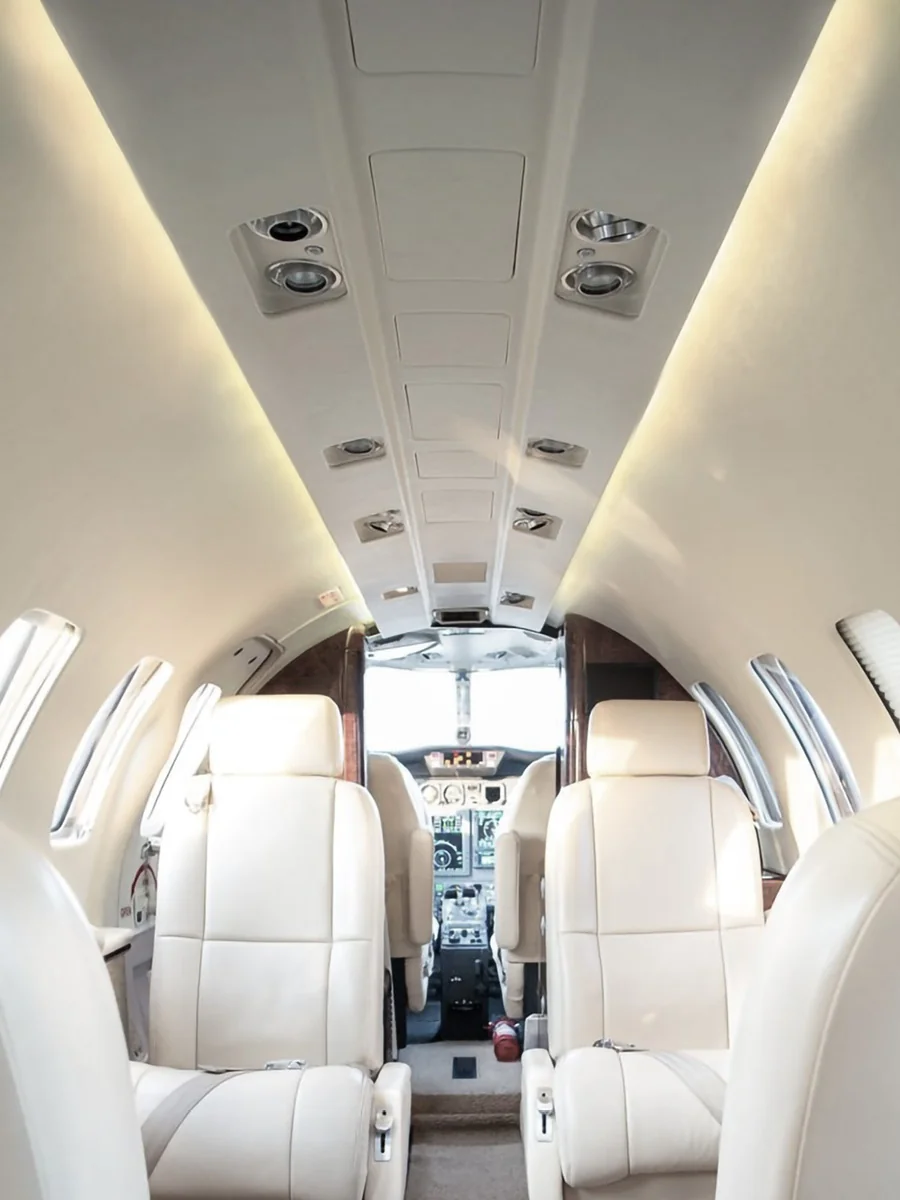

525
550
550 Bravo
560
560XL
S550


Caravan

Caravan
Citation I
Citation I/SP
Citation
Citation II
Citation
Citation V
Citation Excel
Citation S/II

7310007-000
