LED No Smoking/Seat Belt Light


Call (316) 942-2811 to order or request a quote.

Request a Quote

Sold in sets of 2


Beechcraft King Air and 1900 owners now have options when maintaining the Fasten Seatbelt/No Smoking light. This LED upgrade replaces the Teledyne part number 1202-300.

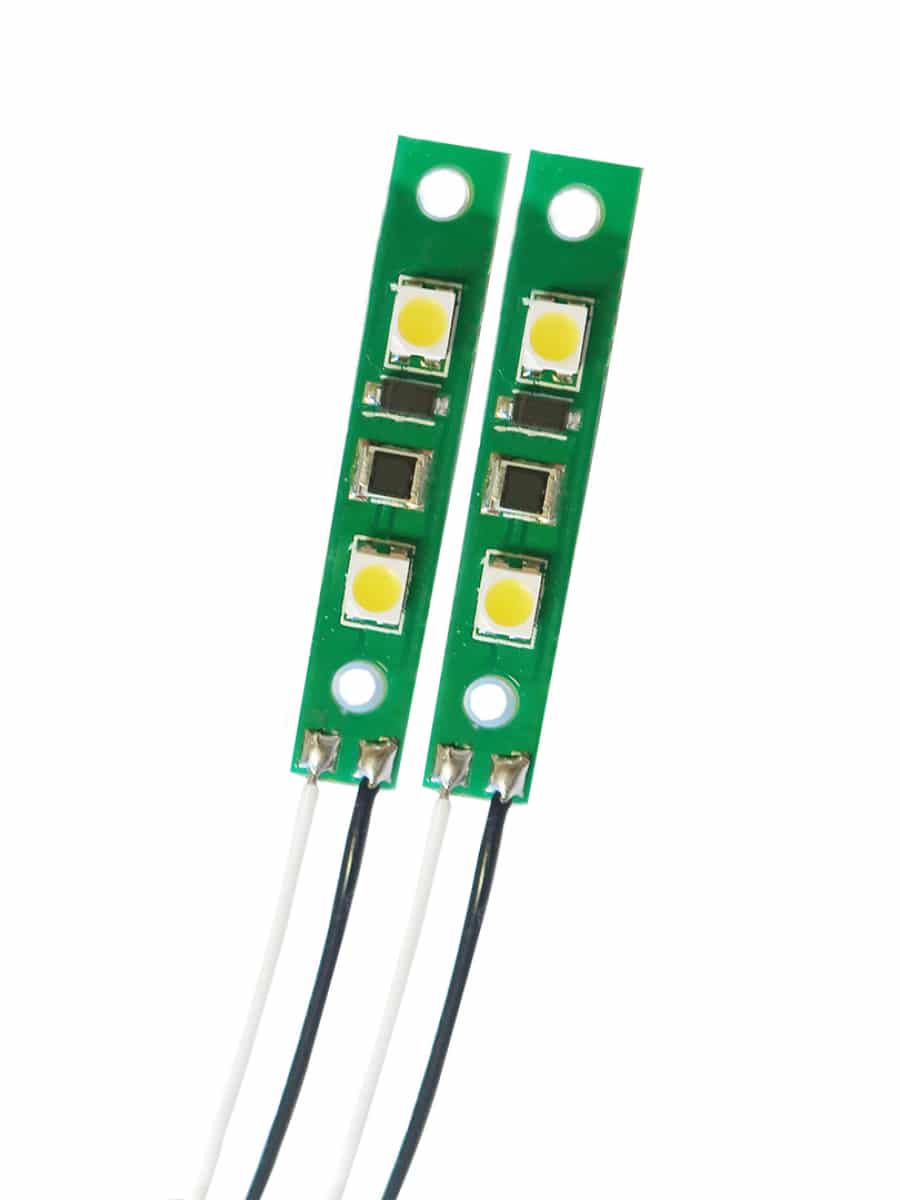

The PWI LED No Smoking/Seatbelt Light is a direct replacement for existing No Smoking/Seatbelt Light bulb boards.  By removing the stock light boards with bulbs, the PWI LED upgrade can be used in their place. The PWI LED upgrade used the factory mounting holes on a same sized light board.

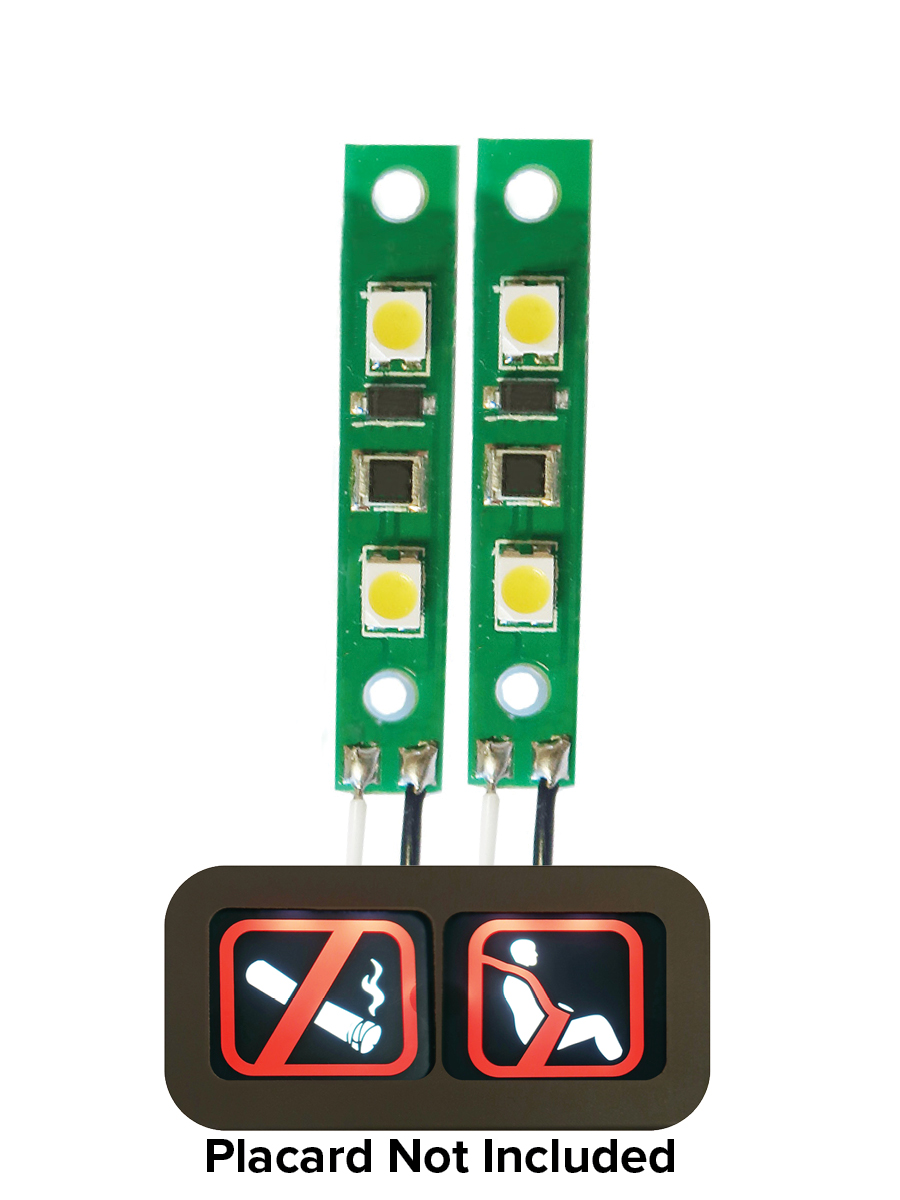

It installs into the old board location without major changes to the fixture. There are two LED light boards in each kit – one for each side of the placard.

The cost and inconvenience of replacing the entire placard is no longer required.

These LED lights are powered by the 28V the aircraft provides and have a 100,000 hour service life. Since PWI LEDs run far cooler than a bulb, continued warping and discoloration of the placard is eliminated. The LEDs also use less power than a bulb, so the electrical power load is reduced, as the larger aircraft have two or three of these placards.

PN: 7310004-000

LED No Smoking Seat Belt Light Upgrade

SKU: 7310004-000 Categories: ,

Direct replacement for Teledyne part #1202-300
Up to 100K hour life
Cooler Operating Temperature
Reduced Power Consumption
Requires no fixture alterations

Aircraft Compatibility:
Beechcraft C90, C90A, C90GT, C90GTI, E90, B200, B200C, B200CT, B200T, 250, B300, B300C, 350I, 350C, 1900 and 1900C

Pilatus PC-12, PC-12-45 and PC-12-47


Warranty: All LED products have a 3 year warranty starting from the invoice date.
All product sales are final.
