FAA-approved LED Aircraft Lighting
LED Ice Light
Replaces 7079 Bulbs
Part Numbers 7310009-000 / 7310045-000
PMA PQ4159CE
Supplements 19, 26 - bayonet mount
Supplements 24 - threaded mount
King Air and Citation Jets
Replaces Bulbs: A7079B24, MS25338-7079, 34-007037-01, 900-005-00, WA7079B24
3-Year Warranty
Designed and Manufactured in the USA
Approved Aircraft
Beechcraft
Baron 55, 58Beechjet 400, 400AKing Air 90, 100, 200, B200, 300, B300Airliner / Commuter 99
Cessna
Caravan 208, 208BCenturion 210, P210, T210Conquest II 441Citation 525 SeriesCitation Bravo 550Citation 560Citation Excel 560XL Citation 650 SeriesCitation Sovereign 680 (Pylon Flood Light)Citation X 750 (Wing Downwash, Pylon Work, Tail Flood)
Overview

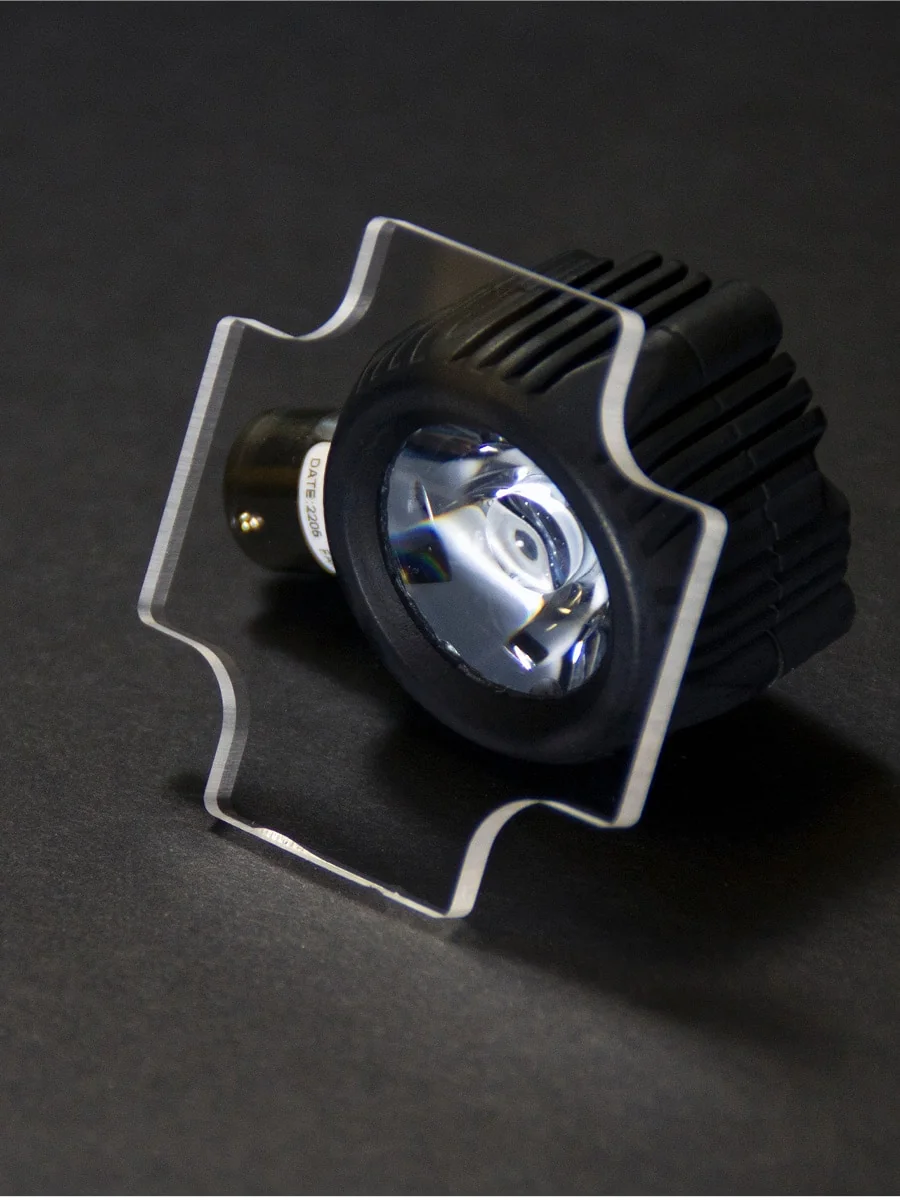

The PWI LED Ice Light replaces incandescent bulbs A7079B24, MS25338-7079, and WA7079B24.It provides 210 more lumens for faster ice detection and is available with a standard bayonet mount or a threaded mount. The threaded mount eliminates the bayonet socket entirely when sockets are corroded.
Long LED life, reduced power draw, and lower generated heat help reduce lens discoloration, cracking, and warping.
6 photos
Why Upgrade
Brighter LED output improves ice formation detection, using far less power than incandescent bulbs.
Installation
Available as a bayonet-mount or with a threaded-mount - removing the bulb socket when bayonet sockets are corroded.
Product Details
System Specs
Bayonet Mount Part Number7310009-000
Threaded Mount Part Number7310045-000
Voltage28 Volts DC
Output730 Lumens
Power Used5.6 Watts
Current Draw200 milliamps
Operating Temp54°C
Beam AngleFWHM 8
Ambient Temp Operating Range-55°C to +70°C
Bayonet Lamp BaseBA15S
Diameter1.6 inches (4.1 centimeters)
Length2.37 inches (6.0 centimeters)
Weight56 grams
PWI LED vs A7079B24 Bulb
| PWI LED | A7079B24 | |
|---|---|---|
| Light Output in Lumens | 730 | 650 |
| Color Temperature | 5000K | 2700K |
| Power Draw | 5.6 Watts | 42 Watts |
| Operating Temp | 54°C | 170°C |
| Operating Hours | 100,000 | 165 |
| Current Draw | 200 milliamps | 1500 milliamps |
Key Benefits
100,000-hour service
Faster ice detection
Better aircraft visibility during taxi, takeoff, landing
Very low power draw
More light, far less generated heat
Lower heat reduces lens degradation
Direct replacement for incandescent bulb
Bayonet or threaded mount
Certificate of Conformity available
Form 8130-3 available on request
Approved Aircraft & Mounting
Complete aircraft compatibility by manufacturer, for quoting or ordering.
Beechcraft
Baron 55, 58Beechjet 400, 400AKing Air 90, 100, 200, B200, 300, B300Airliner / Commuter 99 Series
Cessna
Conquest II 441Caravan 208, 208BCenturion 210, P210, T210
Citation
Citation 525 SeriesCitation Bravo 550Citation 560Citation Excel 560XLCitation 650 SeriesCitation Sovereign 680 (Pylon Flood Light)Citation X 750 (Wing Downwash, Pylon Work, Tail Flood)
Replaces
A7079B24MS25338-707934-007037-01900-005-00WA7079B2411-1518911-1666108-1346811-01963
