Approved LED Aircraft Lighting
1495 LED Reading Light
Direct Replacement for GE 1495 / 1495X
Part Number 7310006-001
PMA PQ4159CE
Supplements 13 and 17
Replacement For
NSN: 6240-00-299-4742
3-Year Warranty
Designed and Manufactured in the USA
Approved Aircraft
Beechcraft
Baron B55E555858AG58King Air B200King Air B200TKing Air B200CKing Air B200CTKing Air B200GTKing Air B200CGTKing Air 300King Air 300CKing Air 300LWPremier I 390Beechjet 400Beechjet 400ABeechjet 400XP19001900C99 series
Cessna
206T206Caravan 208208BCenturion 210P210T210310RT310RUtiliner 401402Titan 404Chancellor 414Golden Eagle 421Conquest II 441Citation 500Citation 501Citation 510Citation 525 CJ1Citation 550 BravoCitation 560XL ExcelCitation 650Citation 680 Sovereign
Learjet
313535A3636A55
Overview

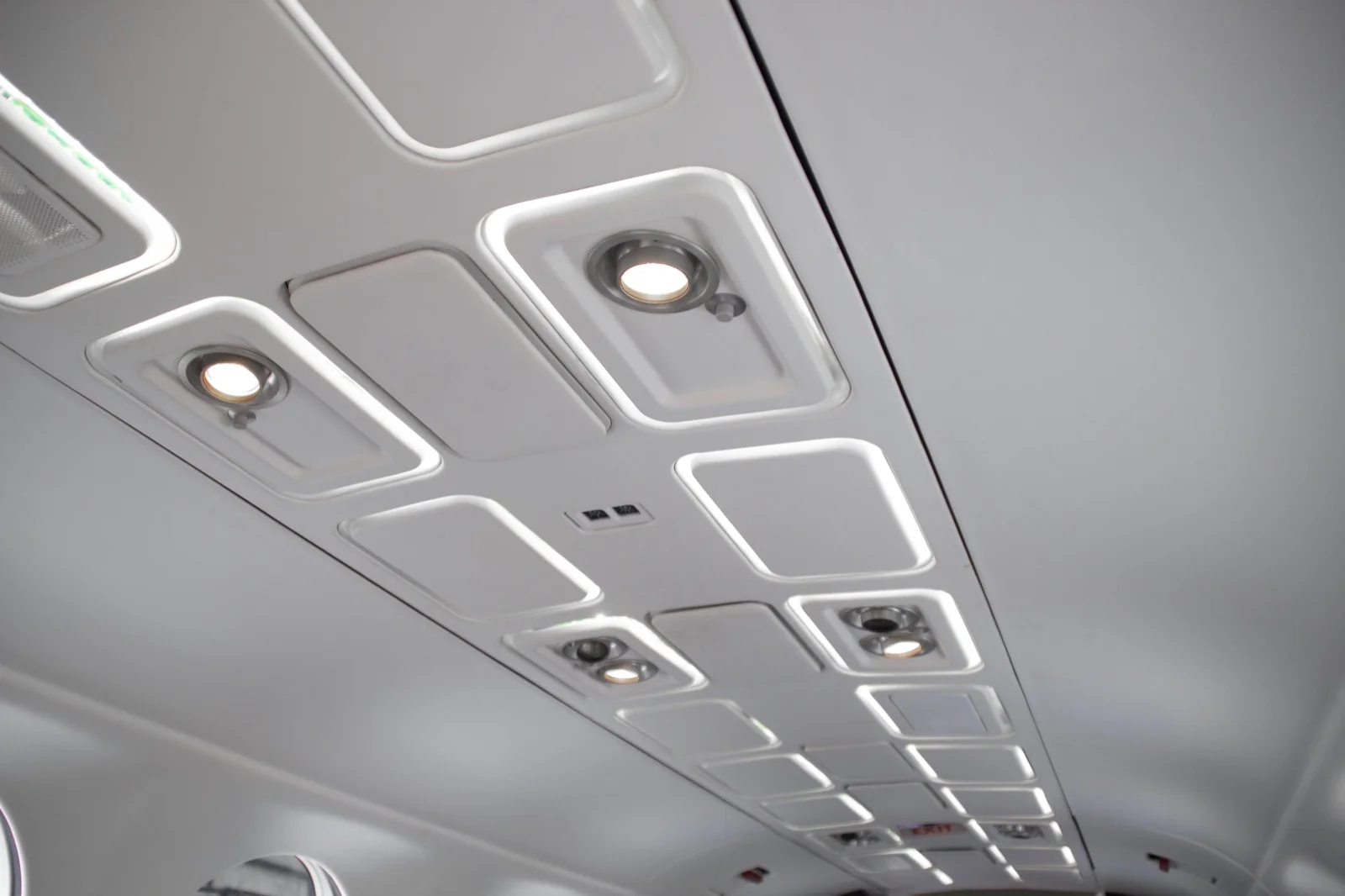

PWI LED reading lights provide 33,000 operating hours. LED lights are a whiter replacement for incandescent bulbs. Barely warmer than cabin air, they demand significantly less aircraft current. PWI lights are PMA approved in twin-engine pistons, turboprops, and jets.
Low power draw
One reading light bulb requires 3 Amps of aircraft power. It takes 73 LEDs to use the same amount of aircraft power. LEDs put out a whiter light, refreshing the whole cabin.
Lower maintenance
Upgrade to LEDs and reduce maintenance on generators and motors, fly further and faster.
Product Details
System Specs
FSC (Federal Supply Class)6240
Operating Life (minimum)33,000 Hours
Electrical Input28 Volt Systems
Current Draw0.017 Amps
Power0.48 Watts
Lamp BaseBA9s Metal Base
Color Temperature4100K – 4500K
DimmableYes
Diameter0.71″ (18 mm)
Length1.37″ (34.8 mm)
Key Benefits
Direct drop-in replacement (no fixture modifications)
Cooler operation (+10°F above ambient)
Dimmable performance
Internal fuse protection
High-speed transition protection
Constant-current circuit architecture
Procurement & Documentation
Certificate of Conformity included; Form 8130-3 available on request
Alternate Part Numbers
All of the following can be replaced by PWI Part Number 7310006-001
GE 1495
GE 1495X
998502-13
998502-15
MS25069-1495
MSN 25069-1495
MS250691495
00-299-4742
002994742
81657
WL-1495
W-L-00111/51
WL0011151
PL1495
ML1495
CM1495
BT1495
JKL1495
88T4282
Grimes LP1495X
Eiko 40700
40703
44842
4024101
40241-01
600300299694
870552
87-0552
08-12268
11-17218
11-04164
11-10976
11-12390
11-10999
11-12708
